There are more than thirty products based on Lipid Self-Emulsifying Technology (LSET) commercially available in the market (Salva et al., 2017). Reformulation of earlier “Sandimmune” (cyclosporine A) into Neoral ® (Aleksander, 2009) as an archetypical class III A lipid class system has given an impetus to the field of LSET. The increasing interest in the field of LSET is due to the fact that 40% of new chemical entities exhibit poor oral bioavailability because of their low water solubility. There are numerous numbers of active molecules uploaded into lipid self-emulsifying matrix which includes; licochalcone A (Zhu et al., 2021), puerarin (Cheng et al., 2016), seocalcitol II (Grove et al., 2006), valsartan (Zhao et al., 2016), CAT3 (Wang et al., 2021), carvedilol (Mandić et al., 2019) ibuprofen (Nouraei et al., 2021), methotrexate (Kim et al., 2019), myeloperoxidase (MPO) (Bansode et al., 2106), Artemisone (Zech et al., 2021), Mefenamic (Kuma et al., 2019), curcumin (Aswar et al., 2020), and a new cathepsin K inhibitor (HL235) (Visetvichaporn et al., 2020).

Self-micro-emulsifying lipids are isotropic mixtures of oils, surfactants, and cosurfactants, which under gentle agitation in aqueous media form oil-in-water nano-emulsions of oil droplet size < 100 nm. There are four identified types of lipid systems; I, II, III and IV depending on polarity of oil mixture, droplet size and digestibility (Pouton, 2006). These systems provide the drug in an already dissolved form in the oil vehicle which upon contacting with gastrointestinal fluids emulsifies spontaneously producing dispersions with large surface area available for drug diffusion. All Biopharmaceutical drug Class Systems (BCS) including categories, I, II, III and IV (Brouwers et al., 2010; Butler et al., 2010) can benefit from reformulation in oil vehicles (Naser et al., 2018a). In a recent study by (Hasan et al., 2018a) a fast dissolving tablet formulation using theophylline (BCS Class I Compound) was obtained at including only 5% SMEDDS oil vehicle. Constituents of LEST or SMEDDS can be used to mimic bioavailability poorly water-soluble drugs and as intestinal enhancers by weakening the tight junction of paracellular membrane (Buyukozturk et al., 2010) or by decreasing efflux of the drug in the GIT due to their effect on to p-glycoprotein transporter (Bansal et al., 2009 and Nornoo et al., 2009). Furthermore, potential flavored SMEDDS vehicles were developed for masking organoleptic taste of APIs (Hasan et al., 2015b).

In this investigation, successful self-micro-emulsifying lipid formulations were developed by optimizing key elements in the oil blends which includes, type of oil, co-surfactant, surfacatant and oil:co-surfactant ratio. Phase dynamic behavior due to the interaction of lipid vehicle with the aqueous media was investigated in an attempt to understand mechanistic of emulsification. Moreover, the interaction of lipid vehicles with various pharmaceutical excepients was also characterized.

Miglyol 812, medium chain triglyceride, Imwitor 988 (C8/C10 mono/diglycerides at ratios 1:1 and Imwitor 308 (mono: di: triglycerides at ratios of 90: 7: 1) were supplied by Condea Chemie GmbH. Capmul MCM (C8/C10 mono/diglycerides at ratios 1:1) was supplied by Abitec Corporation. Tagat TO (PEG-(25)-glyceryl trioleate) and Tagat S2 (PEG-(20)-glyceryl stearate) were supplied by Goldschmidt AG, Germany. Crillet-3 (polyoxyethylene 20 sorbitan monostearate) was supplied by Croda. Cremophor EL (PEG-(35)-castor oil), Kollidon 30 F, Polyplasdone XL 10, were supplied by BASAF.

Representative percentages of oils, co-surfactants and surfactants of 2 g formulations were weighed in glass vials with tight closures. Mixtures were heated in a water bath at 50ºC for 2 min and then thoroughly vortexed and kept for 24-48 at 25ºC for visual assessment. Continuous single phase mixtures were classified as miscible formulations. Mixtures forming two or more phases were denoted as immiscible systems.

An amount of 1gm of each miscible single phase lipid mixture showing was emulsified in 100 mL of Mili Q water in a 500 mL glass beaker. Emulsification was carried out at 25ºC or 37ºC in a thermostatically controlled mechanical shaker set at 100 oscillation per min for 15 min. Areas denoted one phase describes homogeneous oil blends, two phases are immiscible mixtures, SMEDDS are optically clear dispersions while course emulsions refer to turbid aqueous mixtures.

Oil droplet diameter for aqueous dispersions of lipid formulations was measured using Quasi-Elastic Light Scattering (QELS, Malvern model LO-C photoncorrelation spectrometer). Experiments were performed in triplicate.

Phase behavior studies were conducted using static composition method. Blends of oil, various ratios of surfactant/co-surfactant and water which represent ternary phase diagram were made up at various intervals. Additional compositions at defined intervals were made to demark additional phase boundaries. Various ternary and binary compositions of total weight of 5 g mixtures were made in screw-capped glass vials and heated to 70ºC in a thermostatically controlled water bath for 15 min with intermittent vertexing. Mixtures were left at room temperature without disruption for 24 hr for phase identification.

Oil mixtures representing varying degrees of hydrophilicity were blended with various pharmaceutical excipients including β- Cyclodextrin, Polyplasdone XL 10 and Kollidon 30 F. Physical phase behavior of these blends was studied at increasing concentrations of water. The obtained mixtures were classified as either immiscible (2-phase system), paste like or, powdery in textures.

The emulsification profile of miglyol 812 N, capmul MCM and cremophor EL (HLB value = 14) is shown in Figure 1. Optimum clear SMEDDS dispersion can be obtained at ratios of miglyol 812 N:capmul MCM between 40:60 to 60:40 using only 15% surfactant, see lines a-b, a-c, and a-d. Figure 2 depicts equilibrium phases resulting from dilution of lipid system {miglyol 812/capmul MCM/cremophor EL} with water. At least 40% w/w of cremophor EL is required to obtain all the way through clear self-emulsifying clear dispersions (L₂→L₁) on the progressive addition of water.The emulsification profile of miglyol 812 (source of triglyceride), capmul MCM (co-surfactant) and tagat S2 (non-ionic surfactant) has produced extended area of microemulsion (SMEDDS), see Figure 3a. Optimum dispersions are obtained at {miglyol 812 N:capmul MCM} ratio of (6:4) (line a-b) using tagat S2 concentration of more than 25% w/w. Similar optimum ratios were obtained using lipid systems including, miglyol 812, capmul MCM and cremophor RH40 or EL (Hasan et al., 2016b). Nonetheless, an area of turbid course emulsion prior SMEDDS region was formed close to the apex towards high concentrations of tagat S2 due to the formation of swollen microemulsion. This area of coarse emulsion adjacent to the SMEDDS region was not observed in the case of using crillet-3 (polyoxyethylene 20 sorbitan monostearate) or using imwitor 308 instead of capmul MCM, Figures 3(b) and 4 respectively. The emulsification ternary plot for miglyol 812 (source of triglyceride), capmul MCM (co-surfactant) and crillet -3 has produced a region of optically clear dispersions of particle size below 100 nm. Optimum dispersions are obtained at crillet concentration of 40% w/w and a ratio of miglyol 812: capmul MCM of 1:1 (line a-b). It is obvious that there is no coarse emulsion region next to SMEDDS area. The emulsification of miglyol 812N (source of triglycerides) / imwitor 308 (co-surfactant)/ crillet-3 (non-ionic surfactant) ternary blend is depicted in Figure 4. Replacing capuml MCM with imwitor 308 has extended SMEDDS region with optimum dispersions obtained at surfactant concentration of 25% w/w.

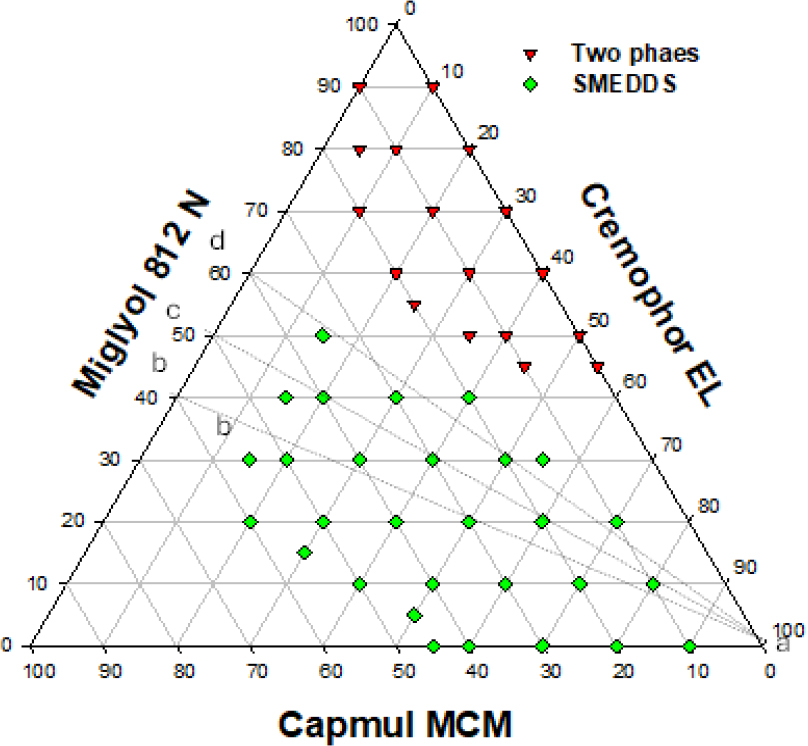

Figure 1:
The emulsification profile of lipidic mix composed of miglyol 812 N, capmul and cremophor EL.

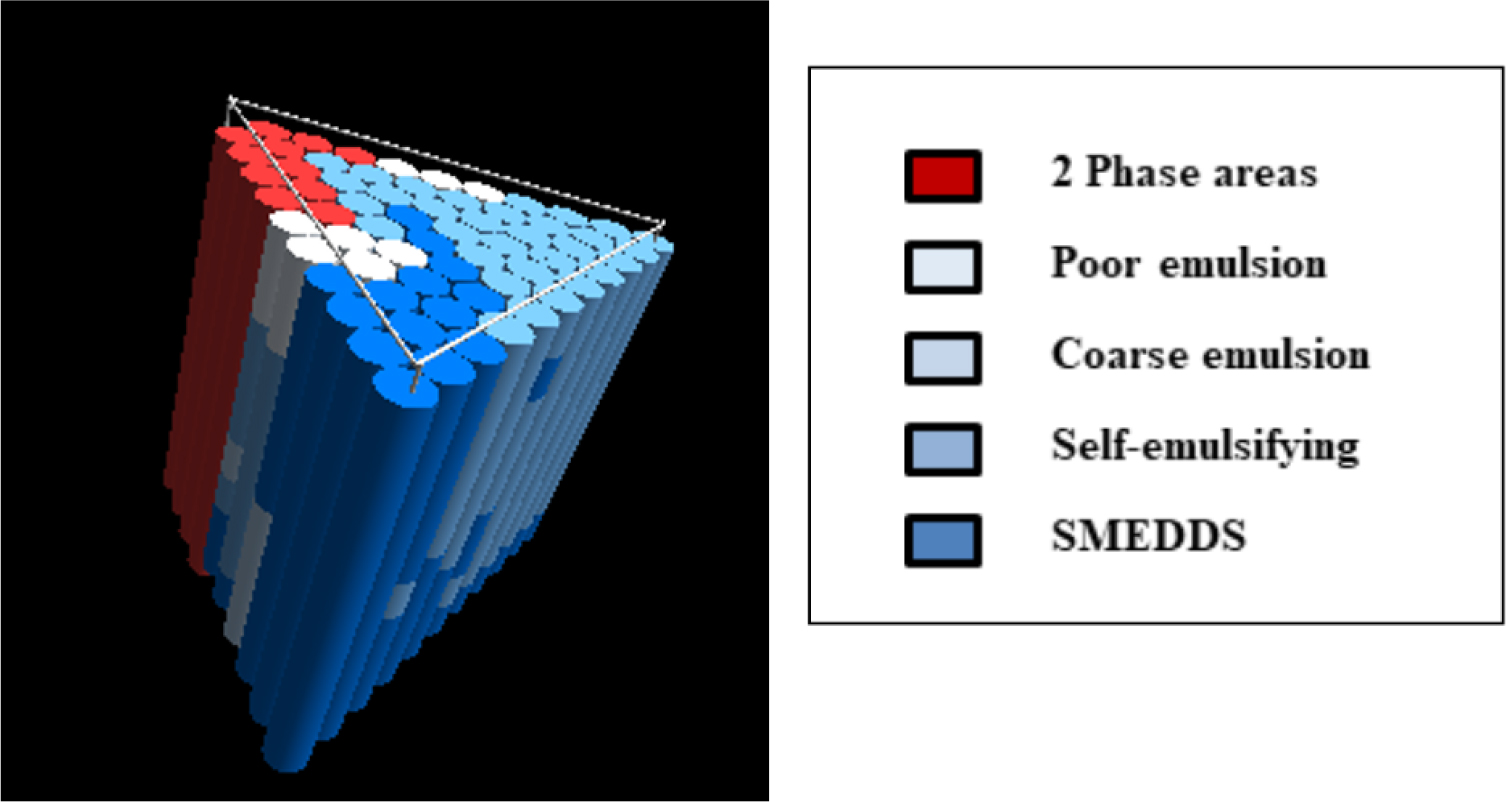

Figure 2:
3D representation of the equilibrium phases resulting from the progressive dilution of water of lipid system composed of miglyol 812, capmul MCM and cremophor EL.

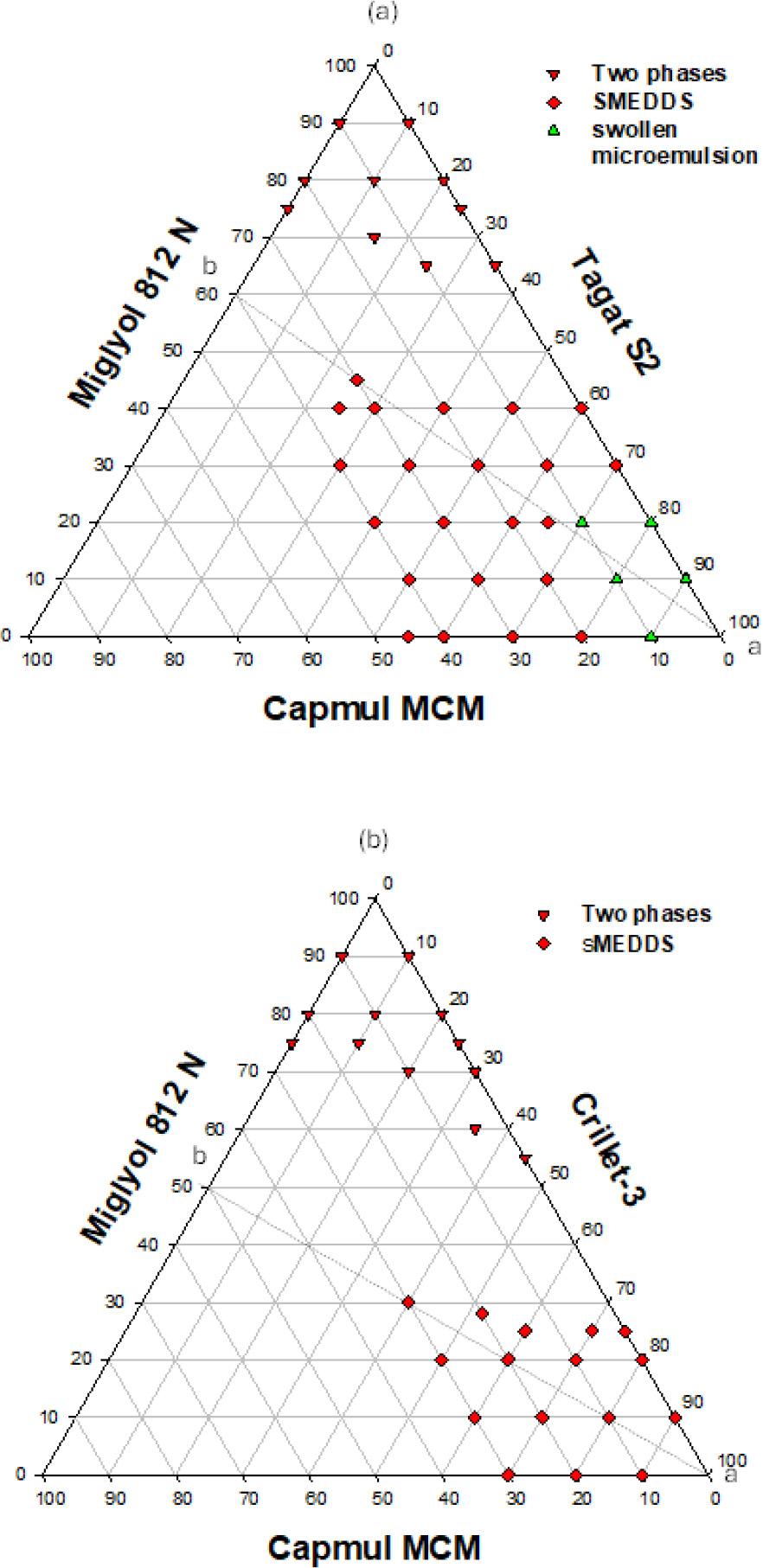

Figure 3:
Emulsification profiles of various lipid compositions; (a) miglyol 812N/ capuml MCM/ tagat S2 or (b) Miglyol 812/ capmul MCM/crillet 3. Areas denoted one phase describes homogeneous oil blends, two phases are immiscible mixtures, SMEDDS are optically clear dispersions while course emulsions refer to turbid aqueous mixtures. Oil formulations were emulsified in water at 37ºC for 15 min.

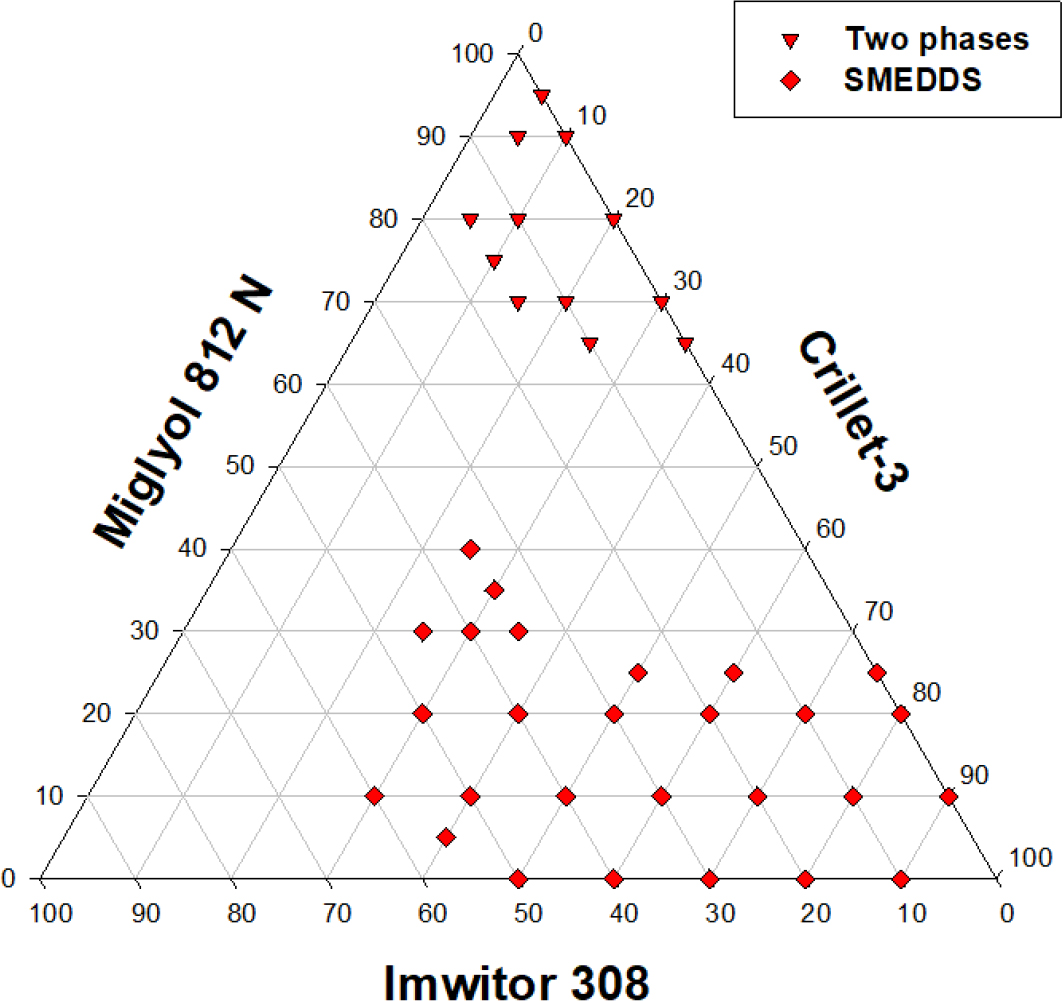

Figure 4:
The effect of including imwitor 308 on the emulsification profiles of miglyol 812 and crillet 3 oil mixtures. Various lipid compositions; (a) miglyol 812N/ imwitor 308/ crillet-3 were emulsified in water at 37ºC for 15 min. Areas denoted one phase describes homogeneous oil blends, two phases are immiscible mixtures, SMEDDS are optically clear dispersions while course emulsions refer to turbid aqueous mixtures.

The aqueous dispersion profile of a type II oil system is shown in Figure 5. A limited area of clear SMEDDS (nano-emulsions) is observed with optimum dispersions obtained at miglyol 812: imwitor ratios of 7:3 using tagat TO concentrations of more than 25% w/w. Dynamic equilibrium phase diagrams for mixtures composed of {miglyol 812/imwitor 988} blends at ratios of either (5:5), or (7:3) and tagat TO diluted with water is depicted in Figures 6a & b, respectively. Clear w/o micro-emulsion is denoted as L₂ phase while, turbid emulsion phase is identified as (L₁ + L₂). For miglyol 812 and {tagat TO/imwitor 988} blends at ratios of (5:5), Figure 6 (a), maximum aqueous solubilization as L₂ phase occurred at ≈ 30% w/w. On the other hand, maximum aqueous solubilization as L₂ phase occurred at ≈ 55% w/w for miglyol 812 and {tagat TO/imwitor 988} blends at ratios of either (7:3), Figure 6(b). This almost 2 folds increase in the L₂ phase region is expected to be due the inclusion of relatively higher concentrations of tagat TO which ensues in increasing polarity of oil droplets.

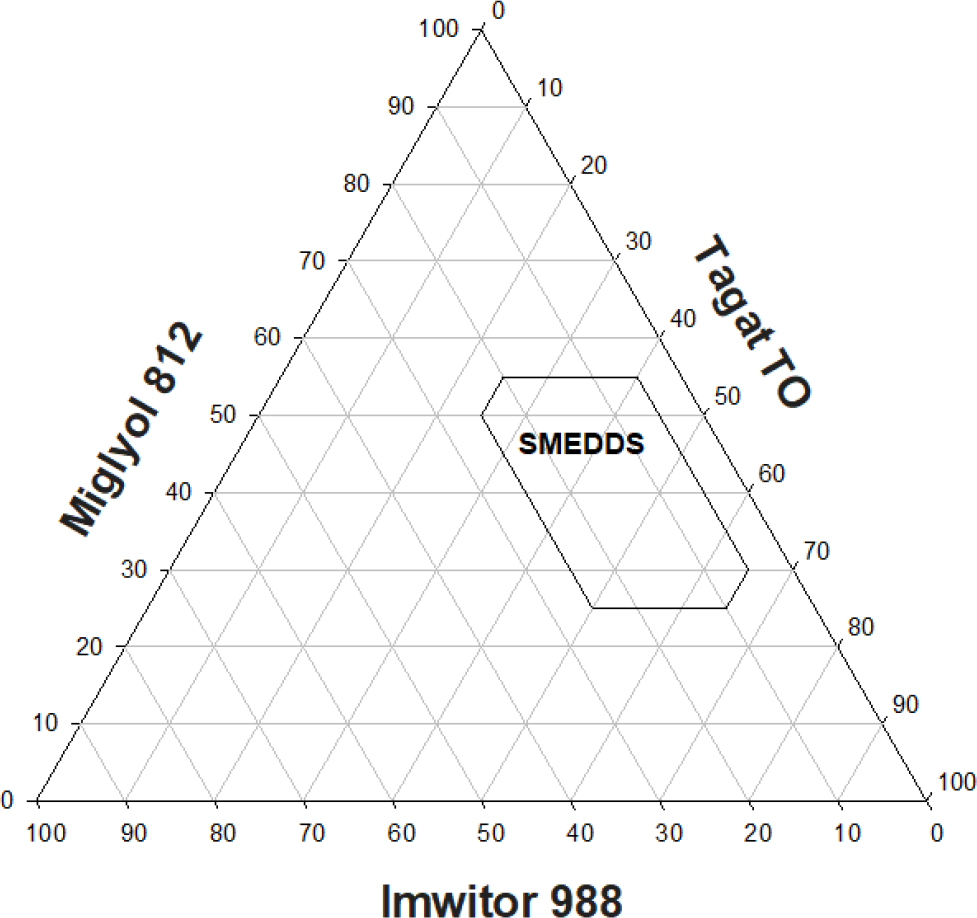

Figure 5:
Emulsification profile lipid system composed of miglyol 812N/ imwitor 988/ tagat TO, Oil formulations were emulsified in water at 37ºC for 15 min. SMEDDS are optically clear dispersions.

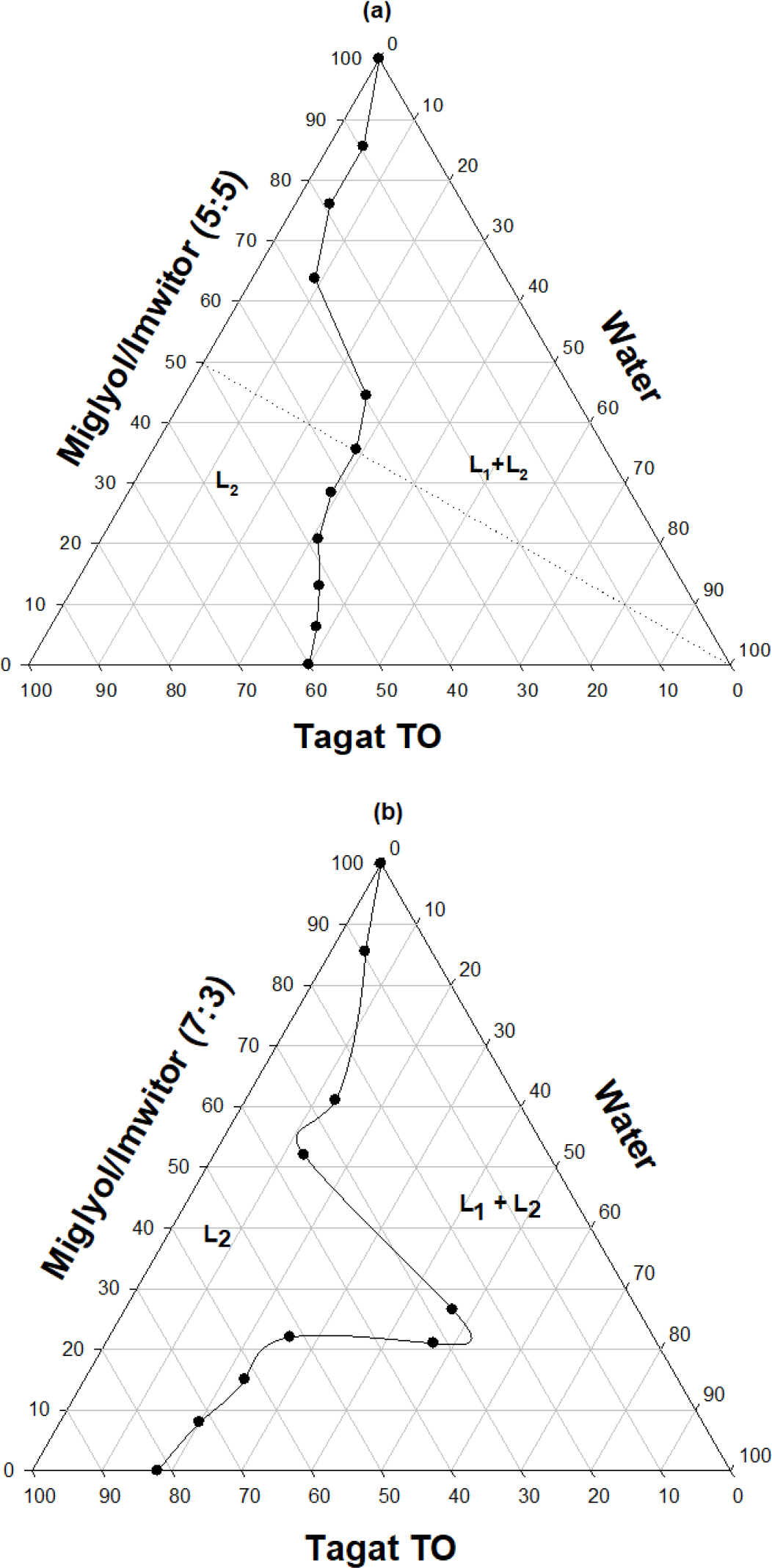

Figure 6:
Dynamic equilibrium phase diagrams for mixtures composed of {miglyol 812/imwitor 988} blends at ratios of either (5:5) or (7:3) and tagat TO diluted with water, Figures 6 (a) and (b), respectively.

The interaction of self-microemulsifying lipid vehicle with various tablet excepients at varying concentration of water is shown in Table 1. The progressive inclusion of kollidon 30 F (polyvinylpyrrolidone PVP) and water in the lipid vehicle has produced immiscible regions at examined ratios. On the hand, the inclusion of varying concentrations of polyplasdone XL 10 (cross-linked PVP) and water in the lipid mix has produced various stable mixtures. The progressive inclusion of polyplasdone XL 10 and water in the lipidic vehicle has transformed mixtures from suspensions, pastes into powdery dosage forms. The neutral crospovidone exhibited better lipophilic interactions with the non-ionic lipid vehicle than Kollidon 30 F (Fransén et al., 2008). Furthermore, the inclusion of cyclodextrin in the oil vehicle has without water produced immiscible mixtures. Nonetheless, at least 20% w/w of cyclodextrin is needed at water concentrations of ≥10% w/w is needed to obtain stable paste physically stable dosage form.

The lipid mixture which is composed of miglyol 812 N, capmul MCM and cremophor EL is a type III system produces self-micro dispersion of particle size of less than 50 nm depending on oil:cosurfactant ratio and surfactant concentration. This combination of lipdic vehicles produces expanded region of nano-emulsions which can mimic bioavailability of poorly water-soluble drugs. The robustness of this lipid mix is due to the combination of cermophor EL and capumul MCM. Cremophor due to its excellent emulsifying capacity is used for solubilization, protection, and delivery of various hydrophilic and lipophilic Active Pharmaceutical Ingredients (API) (Hasan., 2019d). Cremophor EL (polyoxyethylene-(35)-caster oil) is the liquid form of Cremophor RH 40 (polyoxyethylene-(40)-hydrogenated caster oil). In order to avoid crystallization tendency of lipidic system and thus drugs during industrial processes due to variations in environmental temperatures, cremophor EL is more preferred over Cremophor RH 40. Nonetheless, the use of either cremophor El or RH40 as non-ionic surfactants in the lipid mixture produced similar emulsification profiles of nano-sized dispersions (Hasan, 2014e).

On interaction of water, the following dynamic intermediate phases are formed; L₂, L₁ + L₂, L_C and L₁ phases (Hasan, 2019d; Hasan, 2019d). As Figure 2 depicts at least 40% w/w of cremophor EL is required to obtain all the way through clear self-emulsifying clear dispersions (L₂→L₁) on the progressive addition of water. This is in full agreement with a study carried out by Hasan (2019d) using a system composed miglyol 812, imwitor 988 and cremophor RH40. Nonetheless, the study had concluded that incorporating Ibuprofen in the lipid mix has produced various intermediate phases on interaction with water. There is a trend amongst formulation scientists to opt for highly hydrophilic vehicles. In this case, turbid intermediate phases (L₁+L₂) might not appear during interaction with water and therefore the initial L₂ phase could pass instantly through L1 phase. This however may cause hydrophilic constituents to diffuse out into the surrounding aqueous fluids and thus induce drug crystallization in the gut.

Tagat S2 which is polyethylene glycol (PEG) 20 – glyceryl stearate has a relatively low packing parameter, of long carbon tail (C18) with an HLB value of approximately 15. This may compromise the flexibility and the hydration of surfactant film forming at the oil water interface and thus producing turbid dispersions close to the apex towards high concentrations of tagat S2. Nonetheless, the disappearance of coarse emulsion area adjacent to the SMEDDS region in the case of using crillit-3 could be attributed to the fact that crillit-3 is relatively more hydrophilic (HLB~16). Moreover, the inclusion of imwitor 308, a more polar cosurfactant, in the mix increases the fluidity of the surfactant film around oil droplets and hence allows better dispersion. This reflects the fact that crillet-3 has a relatively higher packing parameter due to lower number of Carbons (C12) in the surfactant tail. This results in better chain mobility and hence the formation of flexible surfactant film around oil-water interface which facilitates better dispersions. Imwitor 308 is a mixture of mono, di and triesters (caprylic and capric acid) containing small amounts of unesterified glycerol. Length of the fatty acids and number of free unesterified hydroxyl groups determine degree of surface activity (Raducan et al., 2021). Imwitor 308 has high monoglyceride content, the mono: di: tri ratio is 90: 7: 1, with 1% free glycerol and 1% water content. On the other hand, capmul MCM is an equimolar (1:1) mixtures of mono & di- glycerides. Therefore, the monoglyceride content in Capmul MCM is about 50% whereas the monoglyceride content in imwitor 308 is 90%. As a result, Imwitor 308 is a much more polar compound. Hence, imwitor 308 can profoundly increase, more than capmul MCM, interfacial fluidity of the surfactant film surrounding oil phase causing further decrease in surface tension and thus better dispersions.

Lipid system composed of miglyol 812N/ imwitor 988/ tagat TO is thoroughly studied by Hasan (2021f; 2004e). This system was found to produce nano-sized emulsions with the ability to retain its solvent capacity of active molecules after dispersion, influenced by temperature and ionic strength of the media which can be averted by including lutrol 127 (poloxamer 407) in the lipid matrix. It was found that the expansion of L₂ phase due the incorporation of hydrophilic components in the oil mix or the formation of nano-emulsions from lipophilic aqueous dispersible systems is crucial for mechanistics of self-micro-emulsification (Hasan 2014e). In this case, “Diffusion and Stranding” becomes the predominate theory which describes process of self-micro-emulsification. After reaching maximum solubilization (L₂) close to the interface, further penetration of water into the systems results in the diffusion of the polar components out of the system. This is accompanied by the formation of regions supersaturated in oil and thus spontaneous nucleation of small oil droplets which eventually lead to the formation of microemulsion optically clear systems. The larger the (L₂) area in the phase diagrams the smaller the size of the nucleated oil droplets and vice versa.

Robust self-micro-emulsifying lipid formulations representing type II and type III lipid class systems were developed. At least 40% w/w of cremophor EL is needed to obtain all the way through clear self-emulsifying clear dispersions (L₂→L₁) on the progressive addition of water. The expansion of L₂ phase due the incorporation of hydrophilic is crucial for mechanistics of self-micro-emulsification. Maximum aqueous solubilization as L2 phase occurred at ≈ 55% w/w for miglyol 812 and {tagat TO/imwitor 988} blends at ratios of either (7:3). Furthermore, the inclusion of polyplasdone XL 10 (cross-linked PVP) in the lipid mix has produced various stable mixtures in comparison to polyvinylpyrrolidone PVP or β cyclodextrin.

The author acknowledges the Faculty of Pharmacy at Bath University for providing excellent facilities for research and for the lipid navigation team for carrying out some of the experiments, also Croda and BASF for sending samples as gifts, and finally the School of Pharmacy at Fakeeh College of Pharmacy for their support.
